Pneumatic - ZP28 - 9A



Pneumatic Automatic Full Range Tension Plastic Strapping Tool Powerful tension, Max. 350Kgs (3500N) for heavy duty plastic strapping jobs. More precise and easier adjustment on Tension Force Adjustment Valve.



Products are Made by ZAPAK - TAIWAN



Specification     |     Features     |     Applications

Pneumatic - ZP28 - 9A

Model ZP28 - 9A Strap Width 16 & 19mm Strap Thickness 0.65 - 1.27mm Max Tension 350Kgs (3500N) Sealing Efficiency 85 ± 5% Dimension 14.76 x 5.7 x 5.7 (inch) Weight 3.5Kgs Air pressure requirement 6 - 7bar (87 - 101.5 PSI)

Features

Powerful tension, Maxi.350Kgs (3500N) for heavy duty plastic strapping jobs. Automatic tension,friction-weld and cut,no metal seals required. Air pressure manometer for on-site air supply monitoring. Adjustable tension force & sealing time for various strap specifications. Much smaller air hose at 1/4" I.D. for flexible operation without hose tangling. Alloyed Magnesium Aluminum mechanism ensures light weight and durable structure. Patented single motor structure reduces weight and lower maintenance cost. Modularized structure and reliable mechanism for easy and low cost maintenance. Ergonomic design and excellent weight distribution to reduce hand fatigue Built-in safety device for tension setting and prevent from scratching or breaking the strap. Easy “One-Step” straps inserting. User self-adjustable front & rear strap width guiders to assure perfect strap alignment. User changeable strap cutting blade and other wearing parts. Optional hanger to reduce operation fatigue.

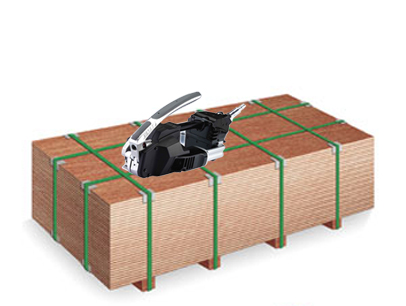

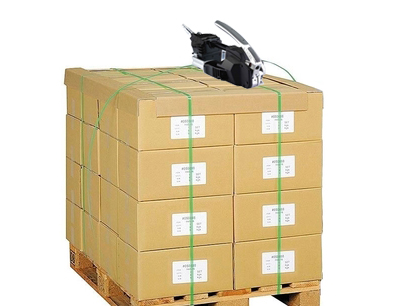

Applications

Automatic Packing Tools
